How long do ground screws last?

Galvanised ground screws are designed to last 50–75 years or more. The hot-dip galvanising process protects against corrosion, even in aggressive soil conditions found across Lancashire and Greater Manchester.

Do I need planning permission for ground screws?

In most cases, no. Because ground screws are considered a non-permanent, reversible foundation method, they typically fall under permitted development rights. However, the structure they support (e.g. a garden room or extension) may require planning permission depending on its size and position.

Can ground screws work on sloping or uneven ground?

Absolutely. This is one of their key advantages. Each screw is individually adjustable, so a perfectly level base can be created on sloping, uneven, or soft ground without the need for expensive retaining walls or land levelling.

What load can ground screws support?

A single ground screw can typically support 3–8 tonnes depending on the screw specification and soil type. For residential projects like garden rooms, orangeries, and extensions, a standard grid of screws provides more than adequate load-bearing capacity.

Are ground screws suitable for all soil types?

Ground screws work in the vast majority of UK soil types including clay, sand, chalk, loam, and gravel. A site assessment determines the optimal screw length and specification. The only limitation is solid rock, where pilot drilling may be required.

Can ground screws be removed?

Yes — they are fully reversible. If you ever need to relocate or remove your structure, the screws can be unscrewed from the ground leaving virtually no trace. This makes them ideal for garden buildings where future flexibility is valued.

Foundations

Ground Screw Foundations — Faster, Greener & Up to 50% Cheaper Than Concrete

Skip the excavation, the mess, and the weeks of waiting. Ground screws deliver load-bearing foundations for orangeries, garden rooms, warm roofs, and extensions — installed in as little as one day across Lancashire and Greater Manchester.

Get a Free Quote See the Comparison

70% Faster Installation

Ground screws are driven in mechanically — no excavation, no formwork, no waiting for concrete to cure. Most residential projects are completed in a single day.

Up to 50% Cost Saving

By eliminating excavation plant hire, skip costs, concrete supply, and labour-intensive formwork, ground screws deliver significant savings on foundation costs.

Less Than Half the Carbon

Ground screws produce less than half the embodied carbon (CO₂e) of an equivalent concrete base. No cement, no aggregate, no waste sent to landfill.

All-Weather Installation

Unlike concrete — which cannot be poured in freezing or wet conditions — ground screws can be installed year-round regardless of weather, keeping your project on track.

What Are Ground Screws?

Ground screws are galvanised steel helical piles that are mechanically driven into the earth to create stable, load-bearing foundations — without any excavation, concrete, or curing time.

Each screw features a helical blade that anchors firmly into the subsoil, providing exceptional pull-out and compression resistance. A mounting plate on top connects directly to a steel or timber subframe, creating a level base ready to build on immediately.

No digging, no damage to your garden or driveway
No concrete — zero curing time, zero waste
Install in enclosed or hard-to-access locations
Level sloping or uneven ground without retaining walls
Fully removable and reusable

Applications

Ground screws are the ideal foundation solution for a wide range of residential projects — from garden rooms to full rear extensions.

Orangeries

Ground screws provide a rapid, non-invasive foundation for orangeries — no need for weeks of excavation and curing. Your orangery can be built on a level, load-bearing base within a single day.

Warm Roof Extensions

Warm roof structures require stable, thermally-efficient foundations. Ground screws create a raised base that improves airflow, reduces moisture risk, and can support insulated floor systems with ease.

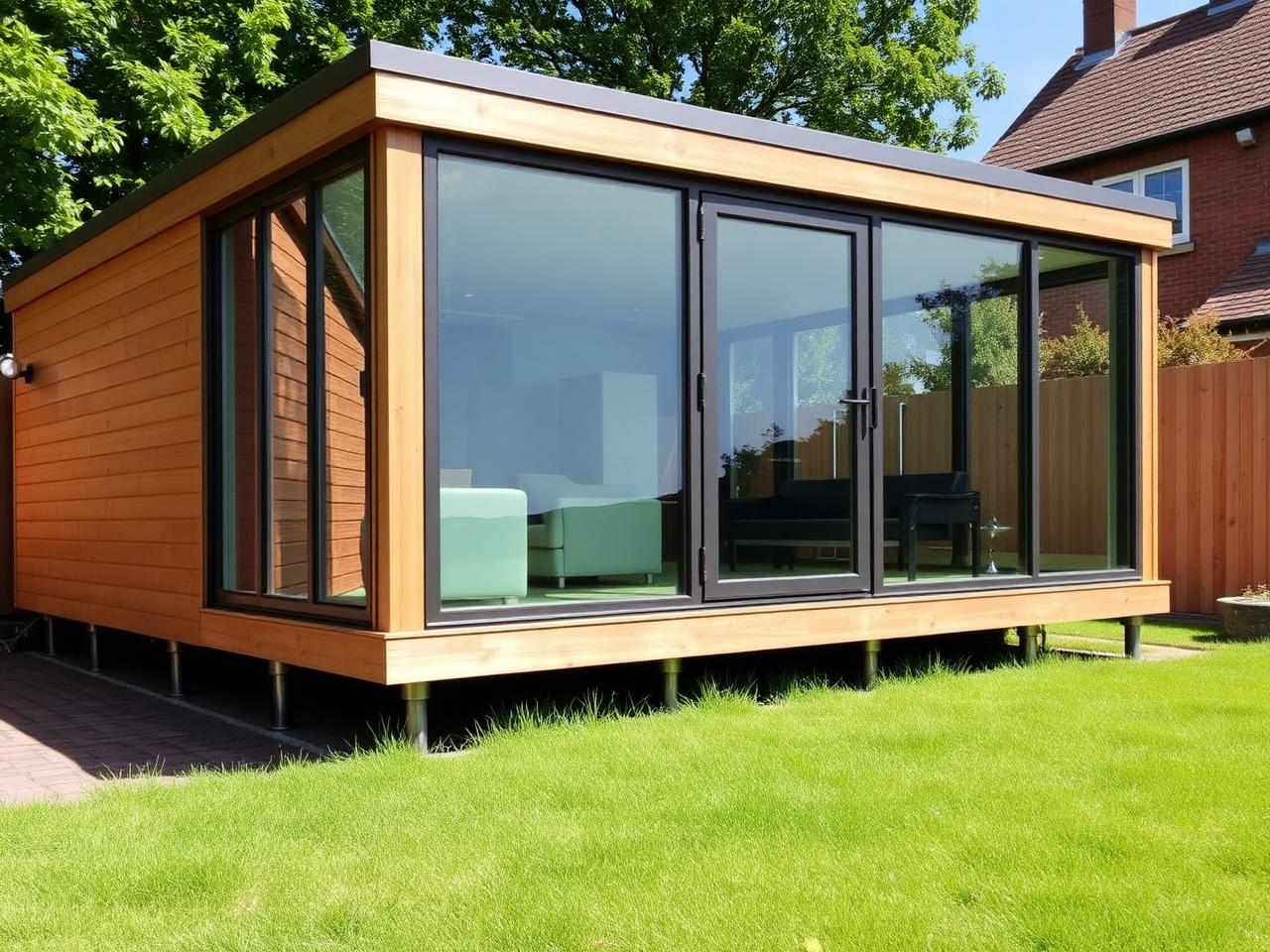

Garden Rooms & Offices

The most popular application for ground screws. A garden room on screw foundations avoids disrupting your lawn, tree roots, and drainage — and is typically installed in under a day.

Home Extensions

For single-storey rear and side extensions, ground screws offer a fast-track alternative to traditional strip or trench foundations, cutting weeks off the build programme and reducing costs by up to 50%.

Ground Screws vs Concrete Foundations

The numbers speak for themselves. For most residential projects, ground screws deliver the same structural performance as concrete at a fraction of the cost, time, and environmental impact.

Feature	Ground Screws	Concrete
Installation time	1 day	2–4 weeks
Ready to build on	Same day	7–14 days curing
Excavation required	None	Extensive
Planning permission	Rarely needed	Often required
Environmental impact	Minimal — no spoil	High — CO₂ intensive
Cost (typical garden room)	£1,500 – £3,000	£3,000 – £7,000
Removable / reversible	Yes — fully	No — permanent
Works on slopes	Yes — adjustable	Requires levelling

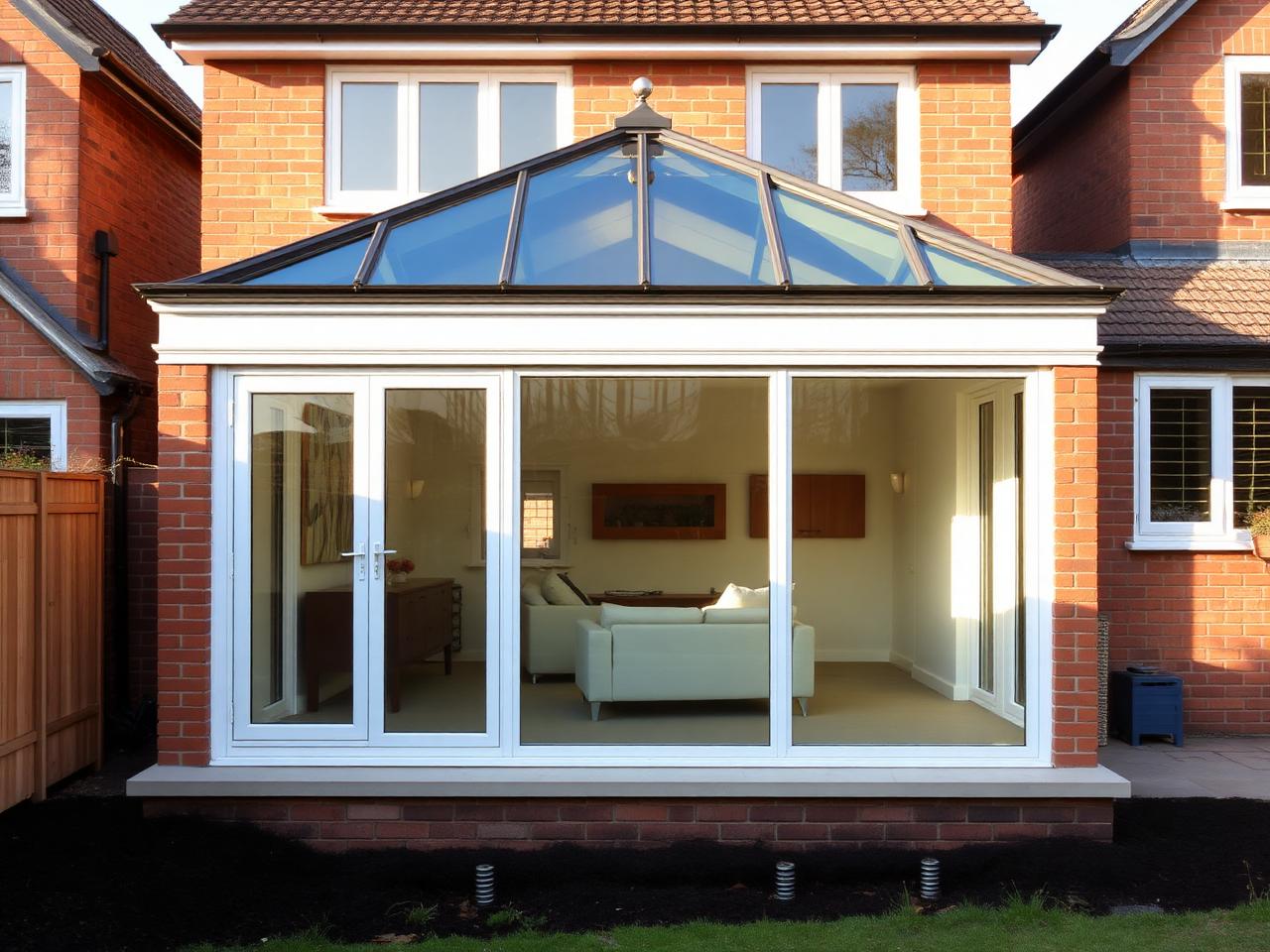

Orangery extension with ground screw foundations

How Ground Screw Installation Works

Site Survey & Design

We assess the ground conditions, take measurements, and design the screw layout based on your project's load requirements and dimensions.

Ground Screw Installation

Using electric-powered installation machines, the screws are driven vertically into the ground — no digging, no concrete, no mess. Each screw is individually levelled.

Subframe & Handover

A bespoke steel or timber subframe is mounted to the screw heads, creating a perfectly level platform. Your build can start immediately — no curing, no delays.

Frequently Asked Questions

Ready to Ditch Concrete?

Get a free, no-obligation quote for ground screw foundations. We cover orangeries, garden rooms, warm roofs, and extensions across Lancashire and Greater Manchester.

Get a Free Quote

Figures based on typical UK residential projects as of 2026. Actual costs and timescales depend on ground conditions, project size, and specification.
